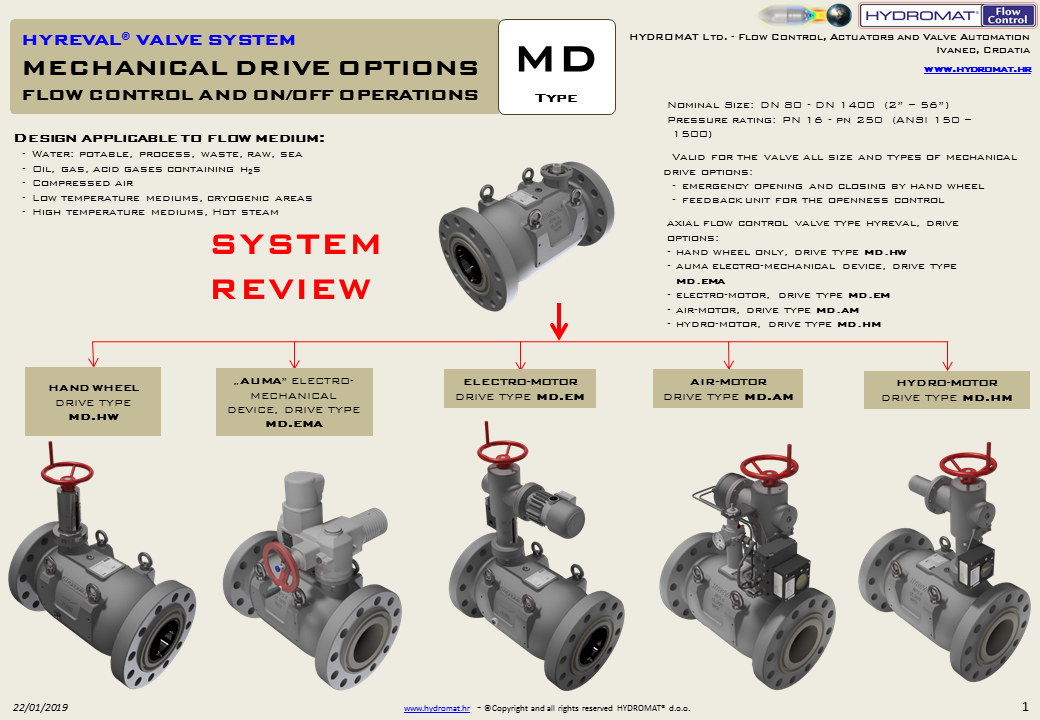

Mechanical Drive – type MD

Design applicable to flow medium:

Water: potable, process, waste, raw, sea

Oil, gas, acid gases containing h2s

Compressed air

Low temperature mediums, cryogenic areas

High temperature mediums, hot steam

Nominal size: DN 80 – DN 1400 ( 2” – 56” )

Pressure rating: PN 16 – PN 200 ( ANSI 150 – 1500 )

Valid for the valve all size and types of mechanical drive options:

Emergency opening and closing by hand wheel

Feedback unit for the openness control

Axial flow control valve type HYREVAL , drive options:

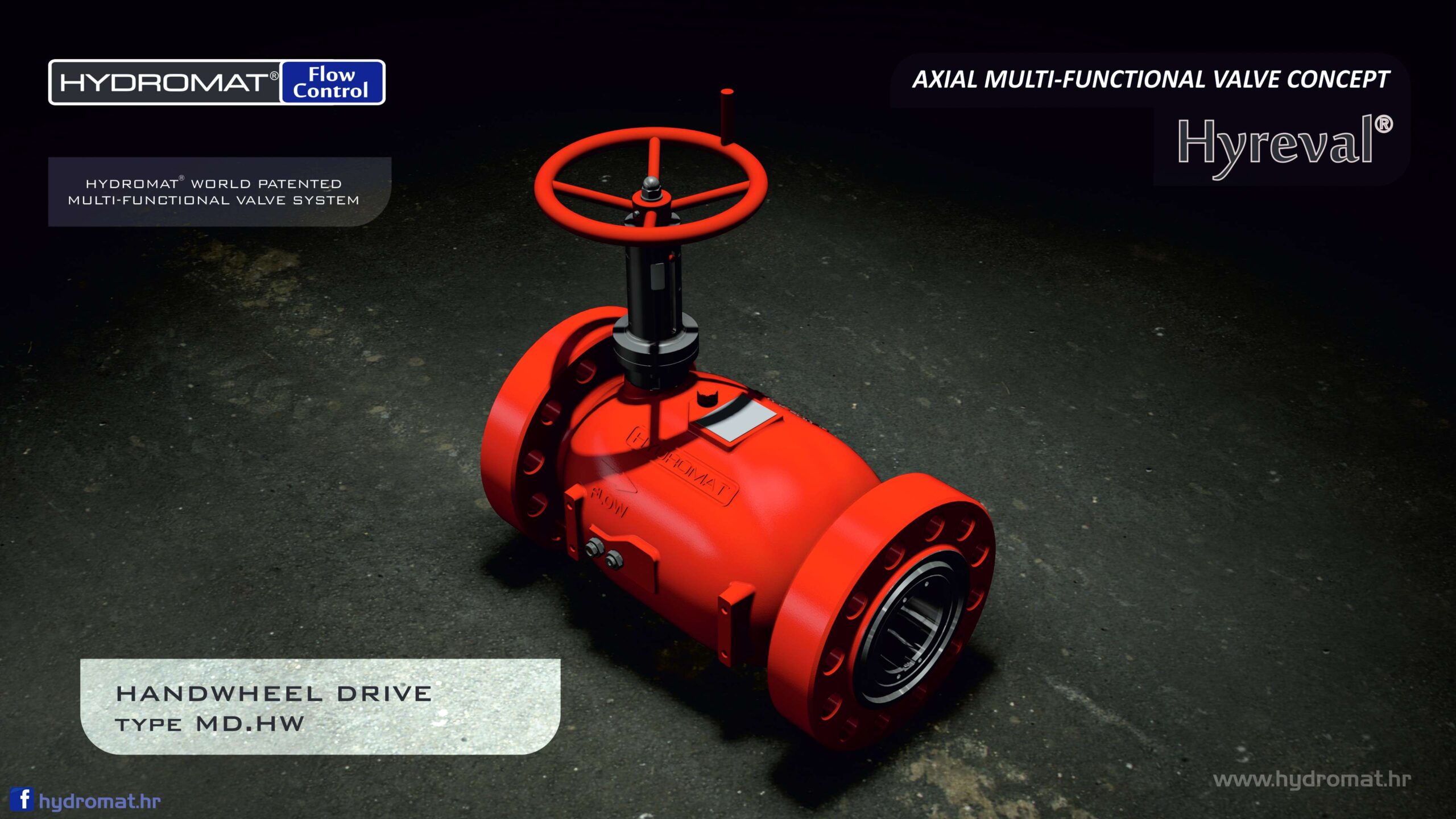

hand wheel only, drive type MD.HW

auma electro-mechanical device, drive type MD.EMA

electro-motor, drive type MD.EM

air-motor, drive type MD.AM

hydro-motor, drive type MD.HM
