Axial flow control

HYDROMAT® offers of the flow control valve and necessary equipment, optionally:

Own world patented multi-functional axial flow control “needle” valve type HYREVAL®
Classical flow control “needle” valve other manufacturers based on the crank mechanism powered by HYDROMAT actuators

The HYREVAL® valve main division based on the drive mode:

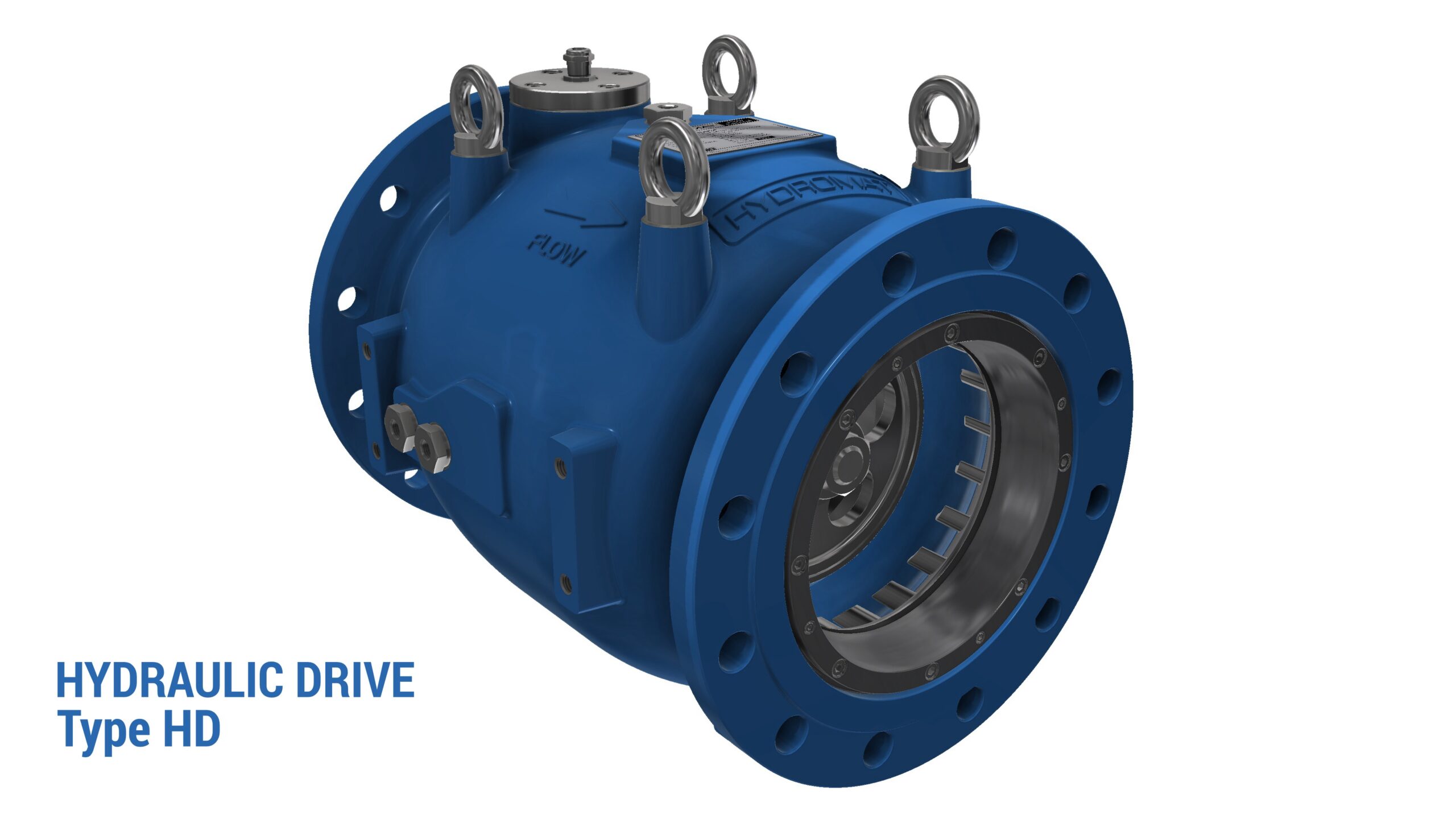

HYDRAULIC DRIVE - Type HD
For drive used hydraulic pressure oil, water or water emulsions up to 250 bar.

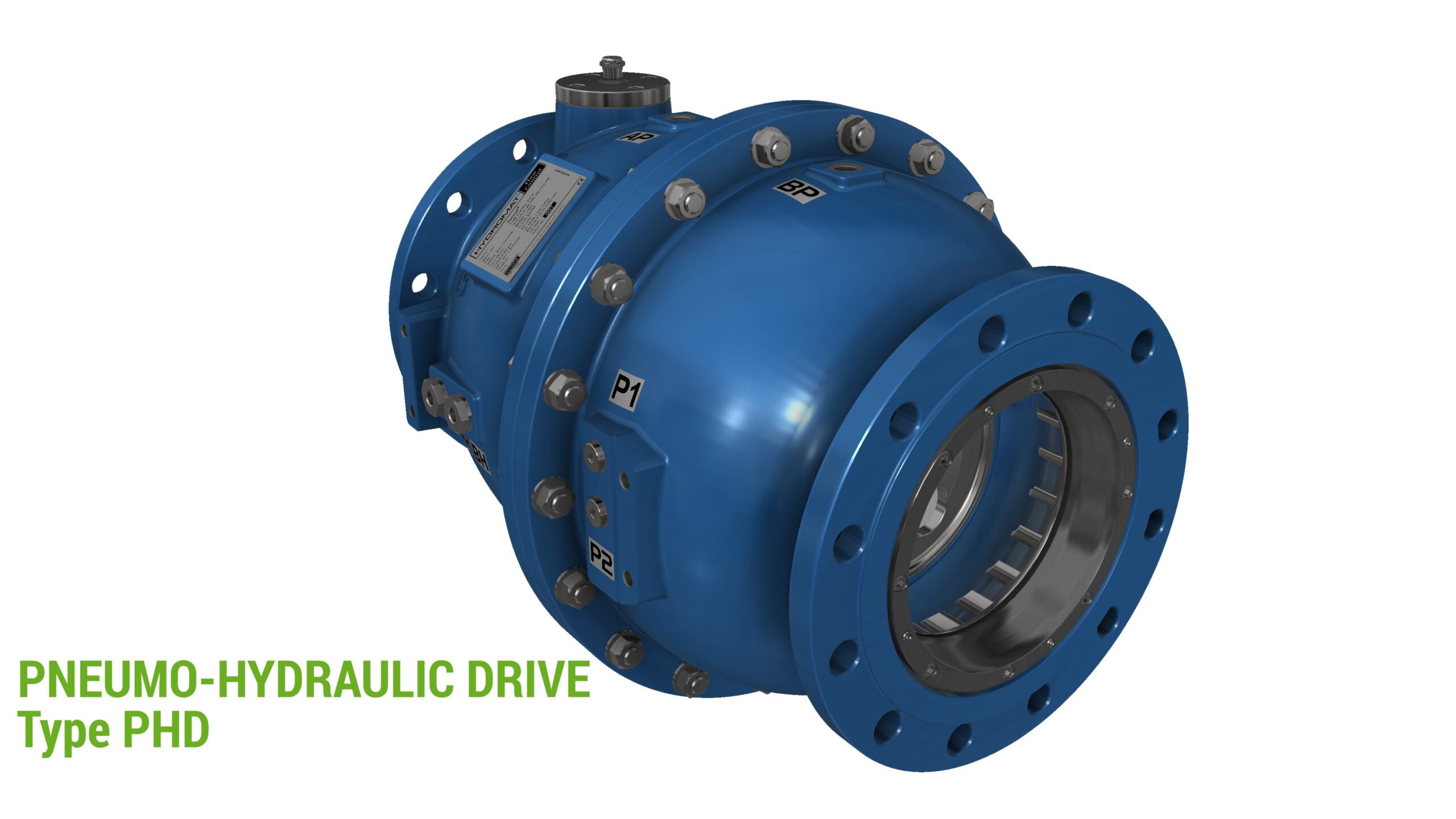

PNEUMO-HYDRAULIC DRIVE - TYPE PHD
Drive directly with compressed air or flow medium and emergency operation with hydraulic hand pump or oil accumulator.
PNEUMATIC DRIVE - TYPE PD
Drive directly with compressed air or flow medium to realization of “automatic valves”.

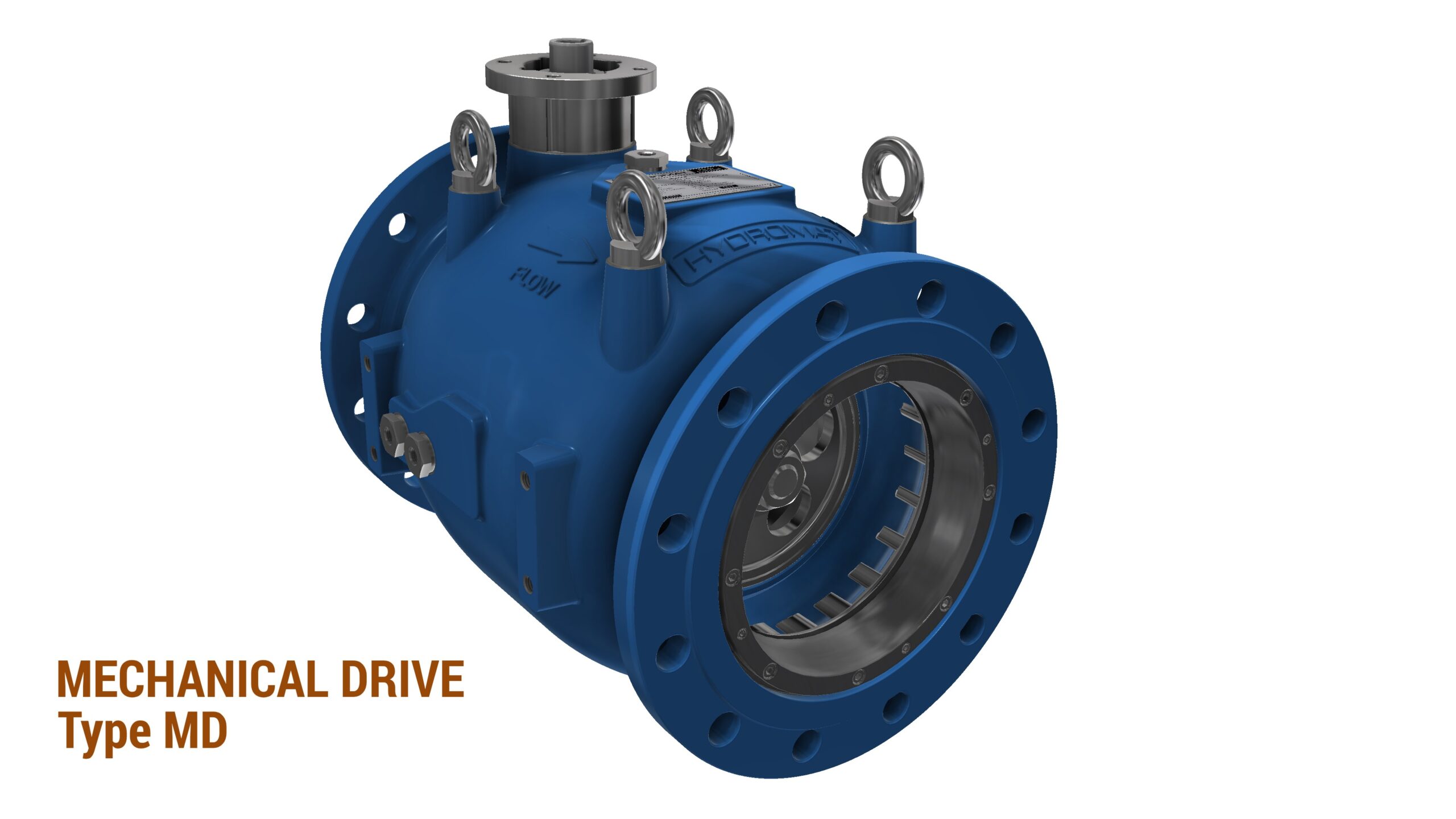

MECHANICAL DRIVE - TYPE MD
Drive mode with electro-mechanical devices as Auma and similar brands, hydro-motors, air-motors. Manual override with hand wheel.

Further, on the HYREVAL valve HYDROMAT® offers AXIAL CHECK VALVES with different operating mode:

Different solutions only by flow medium operating
Different solutions by flow medium operating with hydraulic or pneumatic combinations
Design for uni-directional or bi-directional flow

More Info

Valve Output Element - Vanned Ring


CFD ANALYSIS OF LOCAL PRESSURE AND VELOCITY

Movement of Local Pressure at Different Valve Openness

Movement of Local Velocity at Different Valve Openness

If you have any questions regarding our products and solutions , feel free to contact us for more info.
